Rotary Vane Pumps

Edwards Rotary Vane Pumps

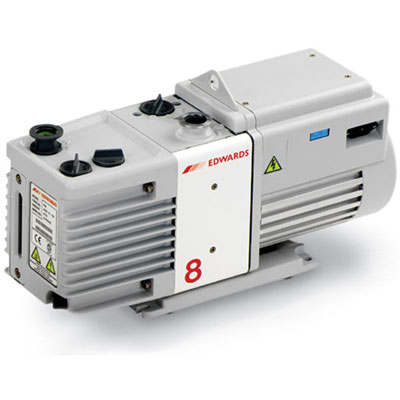

RV8 115/220-240V 1Ø 50/60Hz
A65401903

The RV series of small oil sealed rotary vane pumps deliver excellent ultimate vacuum pressure, high pumping speeds and superior vapour handling capabilities with quiet operation. With over 300,000 units  produced, these pumps offer proven performance that sets the industry standard for R&D and scientific pumping applications.  All RV pumps are approved to UL and CSA standards by an external test house and feature our unique mode selector switch, meaning one model is suitable for both high vacuum or high throughput applications. In summary, you can rest assured that when you choose an Edwards RV oil sealed rotary vane pump you are choosing a product you can rely on from a company you can trust.

Technical Data

Displacement

• 50Hz  9.7 m3h-1 / 5.7 ft3min-1
• 60Hz  11.7 m3h-1 / 6.9ft3min-1

Speed (Pneurop 6602)

• 50Hz  8.5 m3h-1 / 5 ft3min-1
• 60Hz  10 m3h-1 / 5.9 ft3min-1
• Ultimate pressure 2 x 10-3 mbar / 1.5 x 10-3 Torr
• Ultimate pressure GB I3 x 10-2 mbar / 2.3 x 10-2 Torr
• Ultimate pressure GB II6 x 10-2 mbar / 4.6 x 10-2 Torr

Promotion Price : Price : 7,700.00 ( without gst )
